RB80 big

RB-60

  • Casing is made of aluminum alloy and have excellent features on mechanic strength , durability , light weight and smooth exterior.
  •  Impeller is made of aluminum alloy and have excellent features on mechanic strength , durability , and light weight.
  •  RB series ring compressors are designed to comply with the safety requirements of CE / cCSAus and have attained their type approval.
  • Design per customers requirement available.
  • Thermal protector is optional.

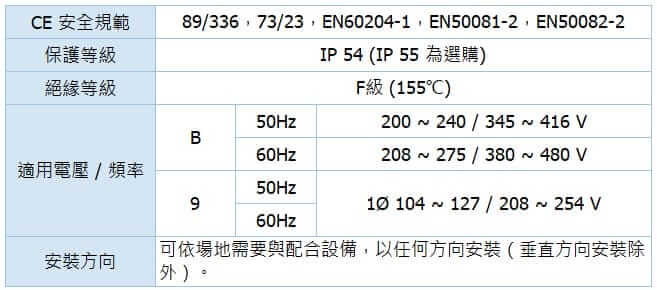

RB60 notice

特性 / Specification and Operation Diagram

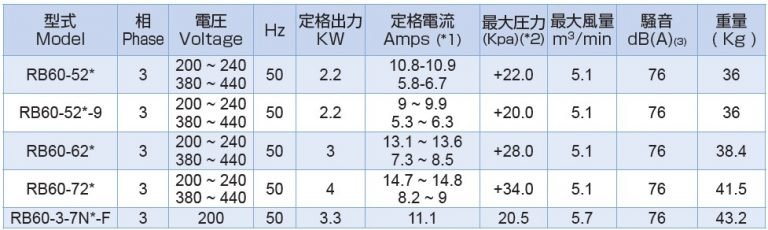

吐出特性 /( 50 Hz ) / Blower with 50 Hz
rb60 50Hz out

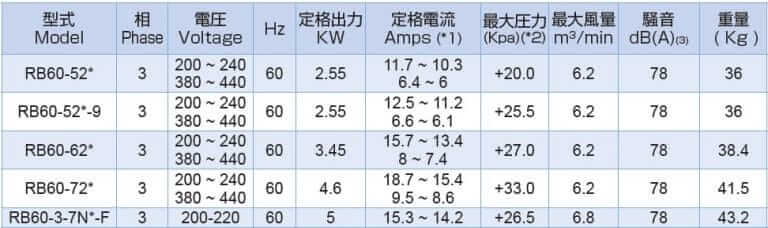

吐出特性 /( 60 Hz ) / Blower with 60 Hz
rb60 60Hz out
*1. under condition (*2) , the test value.
*2. Max. pressure for continuous operation permitted.
*3. dB(A) value gets from 4 points & 1 meter distance test.
*4. can not be operated with closed intake & outlet , a suitable pressure-relief valve must be used.

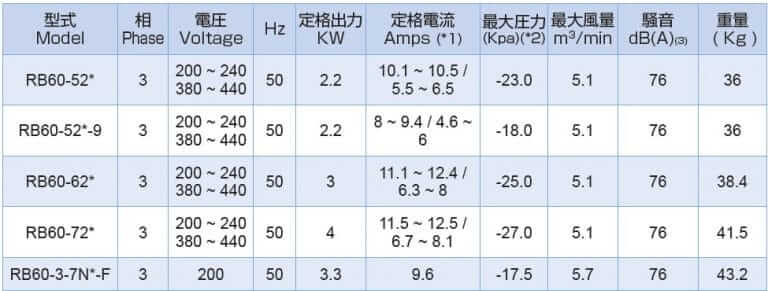

吸入特性 /( 50 Hz ) / Vacuum with 50 Hz
rb60 50Hz in

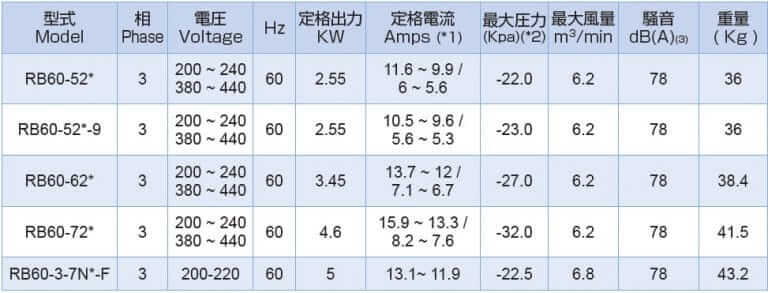

吸入特性 /( 60 Hz ) / Vacuum with 60 Hz
rb60 60Hz in
*1. under condition (*2) , the test value.
*2. Max. pressure for continuous operation permitted.
*3. dB(A) value gets from 4 points & 1 meter distance test.
*4. can not be operated with closed intake & outlet , a suitable pressure-relief valve must be used.

曲線圖 / Operation Diagram - 50/60Hz

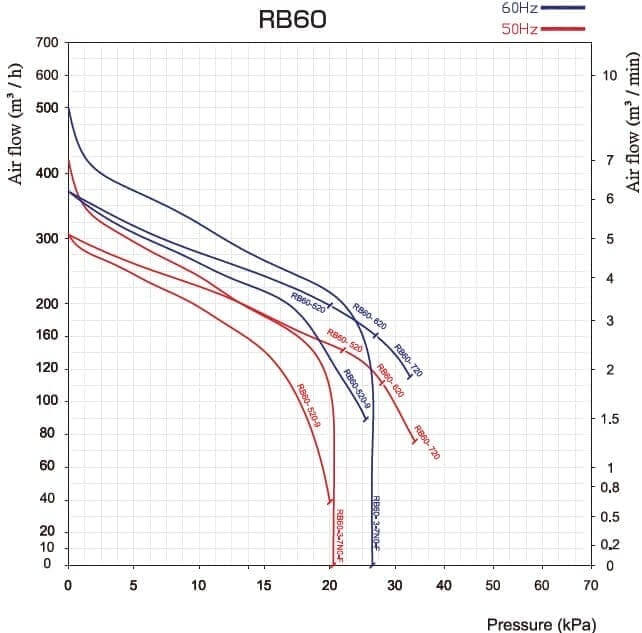

吐出 / Blower

rb60 diagram out

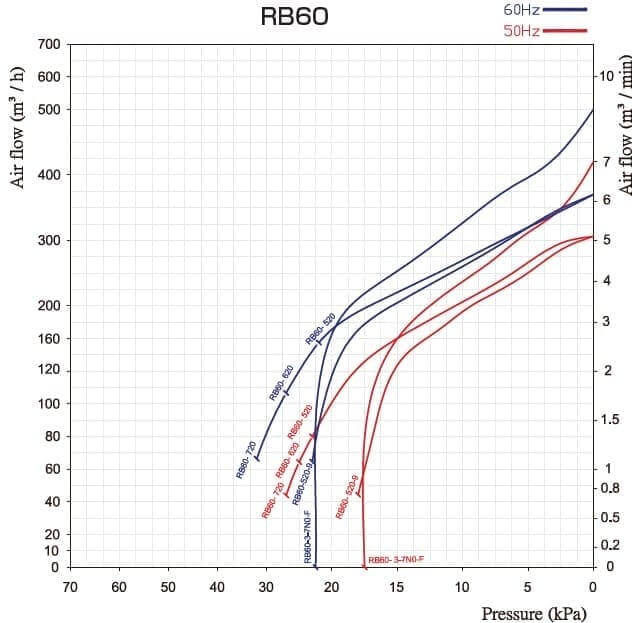

吸入 / Vacuum

rb60 diagram in

尺寸圖 / Dimension

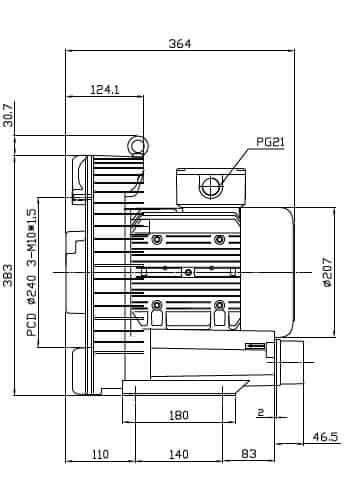

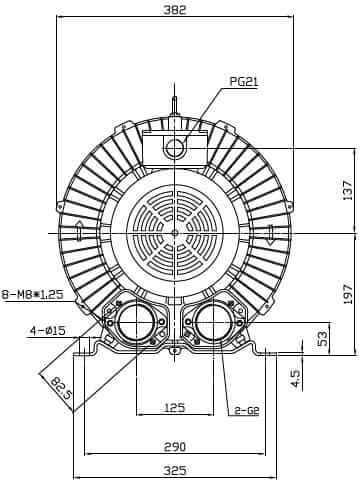

3 Phase-RB60-5/-6

rb60 56 3ph
rb60 567 side

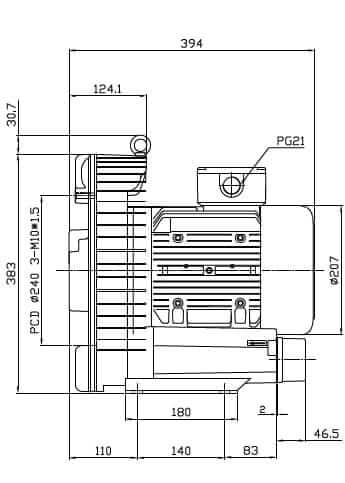

3 Phase- RB60-7

rb60 7 3ph
rb60 567 side

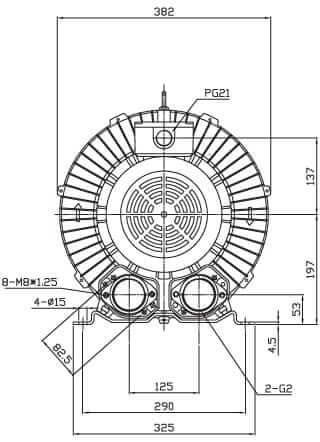

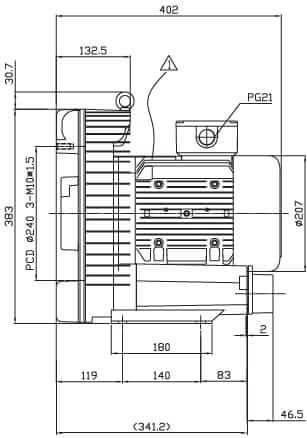

3 Phase-RB60-3-7XX

rb60 3 7xx 3ph
rb60 3 7xx 3ph side

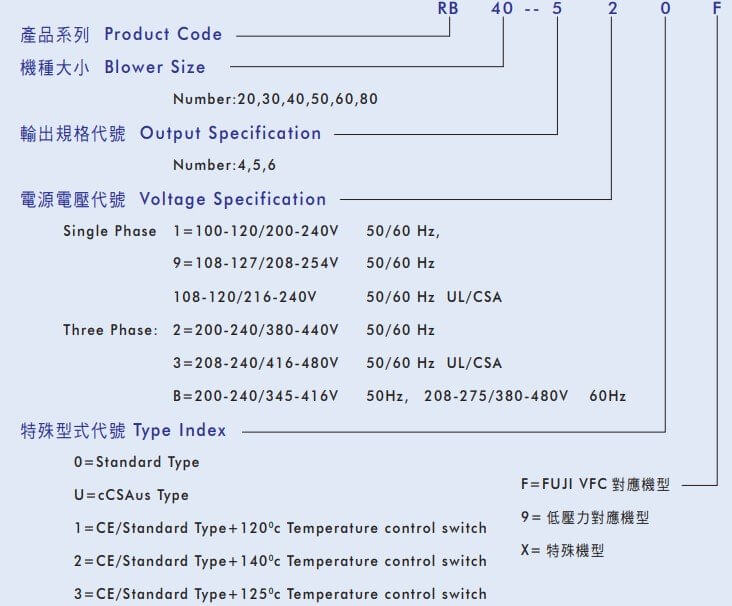

編碼表 / Model Code

RB code

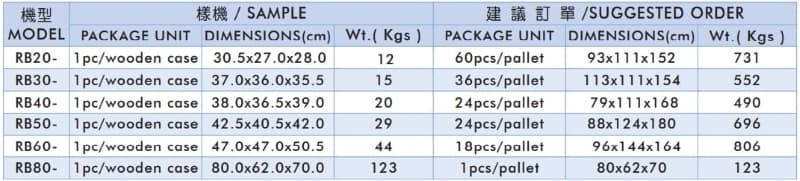

標準捆包尺寸 / Standard Packing

RB Packing
