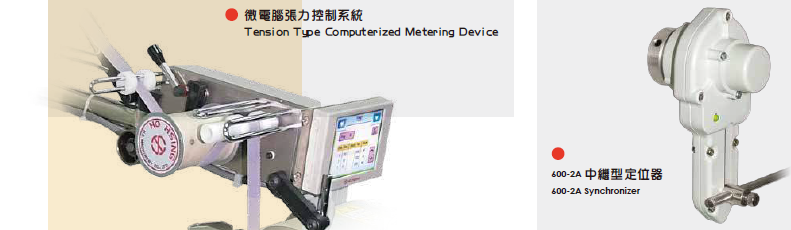

TC Device

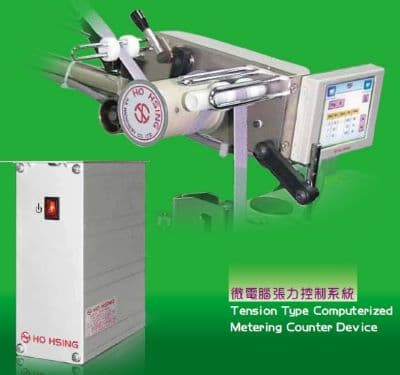

Tension Type Computerized Metering Counter Device
| Function | 機 能 | TC Series | |||||
|---|---|---|---|---|---|---|---|

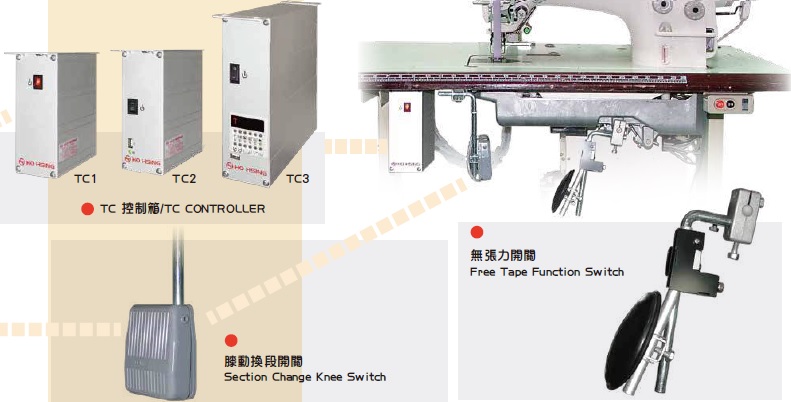

| Control Box Type | 控制箱 | TC1 | TC2 | TC3 | TC4 | TC5 | |
| Motor Rating | 馬達出力 | 400W | 600W | ||||
| Power Voltage Range | 電壓範圍 | Single Phase ( 單相) 200-240V | |||||
| Soft Start | 慢速起動 | ● | |||||
| Tension Type Control System | 張力控制系統 | ● | ● | ● | ● | ● | |
| Untangling Device | 防打結裝置 | ● | ● | ● | ● | ● | |

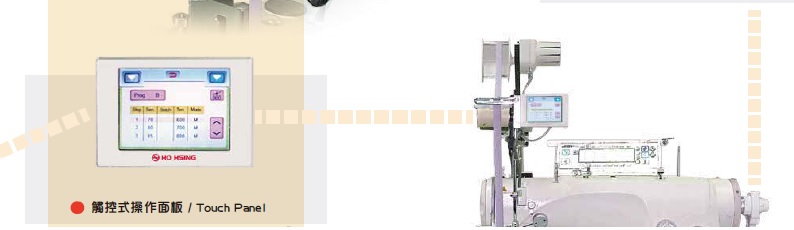

| Touch Panel | 觸控面板 | ● | ● | ● | ● | - | |
| Button Panel | 按鍵式面板 | - | ● | ||||
| Tape Cutter | 斬刀 | ● | ● | ||||
| Edge Sensor | 電眼 | ● | ● | ||||
| Presser Foot Lifter | 押腳提昇 | ● | ● | ||||
| Motor Running Signal (Needle Cooling) | 馬達運轉輸出 | ● | ● | ||||
| Data Upload / Download By USB | USB 上傳 / 下載 | ● | ● | ||||
| Free Tension Switch Kit | 無張力開關組 | OPTION | OPTION | OPTION | OPTION | ||

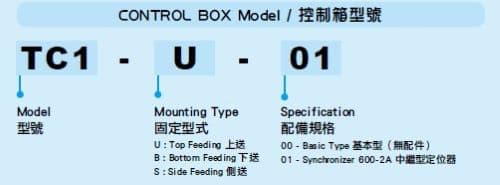

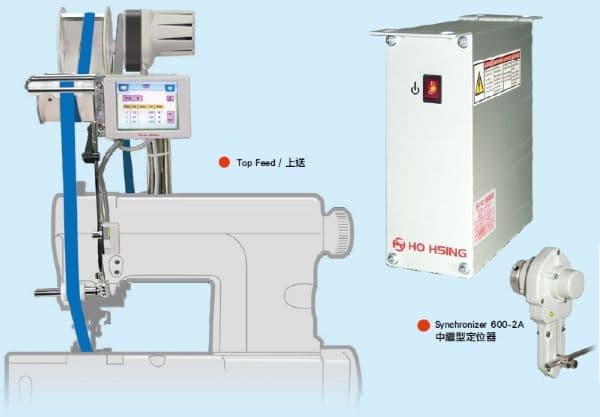

TC1 Device
| Function | 機 能 | TC1 |
|---|---|---|
| Control Box Type | 控制箱 | TC1 |
| Power Voltage Range | 電壓範圍 | Single Phase ( 單相) 200-240V |
| Tension Type Control System | 張力控制系統 | ● |
| Untangling Device | 防打結裝置 | ● |
| Touch Panel | 觸控面板 | ● |
| Free Tension Switch Kit | 無張力開關組 | OPTION |
| * Gross Weight / 毛重 12.0 Kgs * Packing Dimension / 包裝尺寸 450 L x 350 W x 405 H mm | ||
| Actual weight might be different depends on the varied accessories. 實際重量會依配件的不同而差異。 | ||

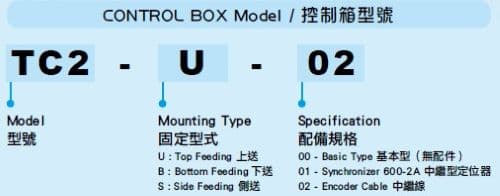

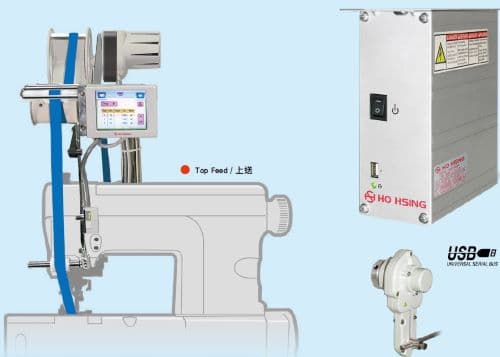

TC2 Device
| Function | 機 能 | TC2 |
|---|---|---|
| Control Box Type | 控制箱 | TC2 |
| Power Voltage Range | 電壓範圍 | Single Phase ( 單相) 200-240V |
| Tension Type Control System | 張力控制系統 | ● |
| Untangling Device | 防打結裝置 | ● |
| Touch Panel | 觸控面板 | ● |
| Tape Cutter | 斬刀 | ● |
| Edge Sensor | 電眼 | ● |
| Presser Foot Lifter | 押腳提升 | ● |
| Motor Running Signal (Needle Cooling) | 馬達運轉輸出 | ● |
| Data Upload / Download By USB | USB 上傳 / 下載 | ● |
| Free Tension Switch Kit | 無張力開關組 | OPTION |
| * Gross Weight / 毛重 13.5 Kgs * Packing Dimension / 包裝尺寸 450 L x 350 W x 405 H mm | ||
| Actual weight might be different depends on the varied accessories. 實際重量會依配件的不同而差異。 | ||

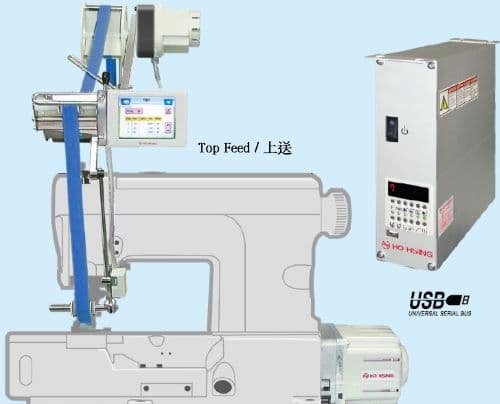

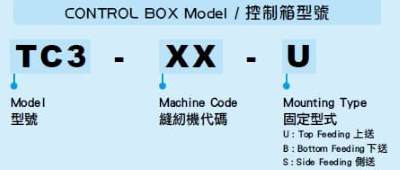

TC3 Device
| Function | 機 能 | TC3 | |
|---|---|---|---|
| Control Box Type | 控制箱 | TC3 | |
| Motor Rating | 馬達出力 | 400W | 600W |
| Power Voltage Range | 電壓範圍 | Single Phase ( 單相) 200-240V | |
| Soft Start | 慢速起動 | ● | |
| Tension Type Control System | 張力控制系統 | ● | |
| Untangling Device | 防打結裝置 | ● | |
| Touch Panel | 觸控面板 | ● | |
| Tape Cutter | 斬刀 | ● | |
| Edge Sensor | 電眼 | ● | |
| Presser Foot Lifter | 押腳提昇 | ● | |
| Motor Running Signal (Needle Cooling) | 馬達運轉輸出 | ● | |
| Data Upload / Download By USB | USB 上傳 / 下載 | ● | |
| * Gross Weight / 毛重 16.5 Kgs * Packing Dimension / 包裝尺寸 450 L x 350 W x 685 H mm | |||
| Actual weight might be different depends on the varied accessories. 實際重量會依配件的不同而差異。 | |||

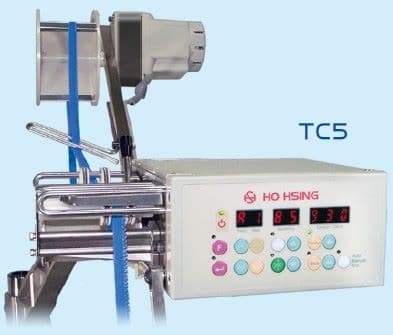

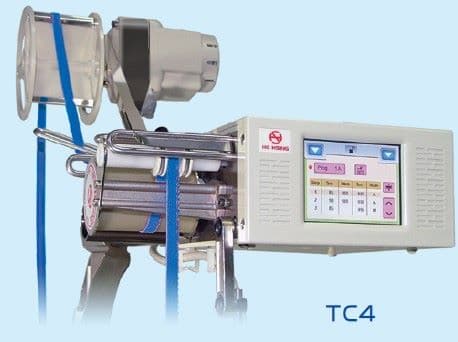

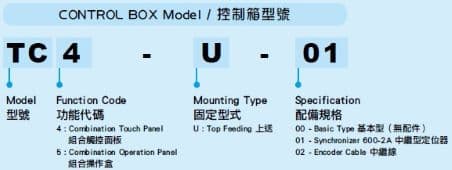

TC4 / TC5 Device
| Function | 機 能 | TC Device | |
|---|---|---|---|
| Control Box Type | 控制箱 | TC4 | TC5 |
| Power Voltage Range | 電壓範圍 | Single Phase ( 單相) 200-240V | |
| Tension Type Control System | 張力控制系統 | ● | ● |
| Untangling Device | 防打結裝置 | ● | ● |
| Touch Panel | 觸控面板 | ● | - |
| Button Panel | 按鍵面板 | - | ● |
| Free Tension Switch Kit | 無張力開關組 | OPTION | OPTION |
| * Gross Weight / 毛重 TC4/TC5: 11.5 Kgs * Packing Dimension / 包裝尺寸 420 L x 330 W x 300 H mm | |||
| Actual weight might be different depends on the varied accessories. 實際重量會依配件的不同而差異。 | |||
Please read instruction manual before using the machine for safety operation. Specifications subject to change without notice.
- Please contact us when you need more information. sales@hohsing.com.tw
