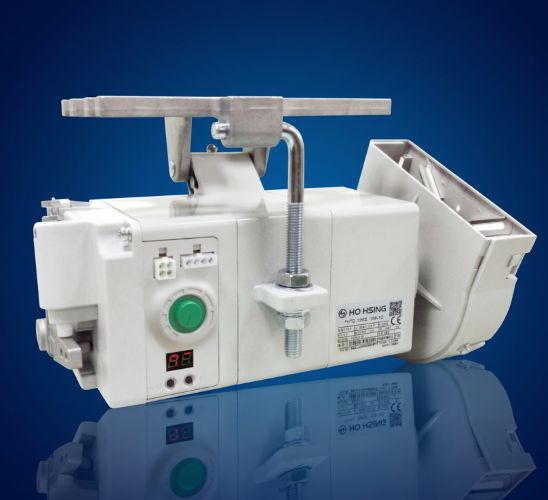

Table Mounting Type / Energy saving
- Energy saving.
- Efficiency improvement.
- Convenient speed adjustment.
- Digital parameter setting.
- Flexible sewing control.
Power Consumption
Specification
| FUNCTION | 機 能 | G40 - 1 | G60 - 1 | G40 - 2 | G60 - 2 |
|---|---|---|---|---|---|
| Motor Rating | 馬達出力 | 400W | 600W | 400W | 600W |
| Power Voltage Range | 電壓範圍 | Single Phase ( 單相 ) : 200 ~ 240V | |||
| Position Control | 定位控制 | ◎ | ◎ | ◎ | ◎ |
| Speed Control | 速度控制 | ● | ● | ● | ● |
| Air Suction | 吹風功能 | ● | ● | ||
| Presser Foot Lifter | 押腳功能 | ● | ● | ||
| Rotation Adjustment | 正反轉選擇 | ● | ● | ● | ● |
| * Gross Weight / 毛重 : G40: 6.0 Kgs / G60: 7.0 Kgs * Packing Dimension / 包裝尺寸 340 L x 295 W x 260 H mm | |||||
| Actual weight might be different depends on the varied accessories. 實際重量會依配件的不同而有所差異。 | |||||
Standing Operation Pedal (Optional)
- SOP-8
- Two pedals designed for speed and needle UP control.
