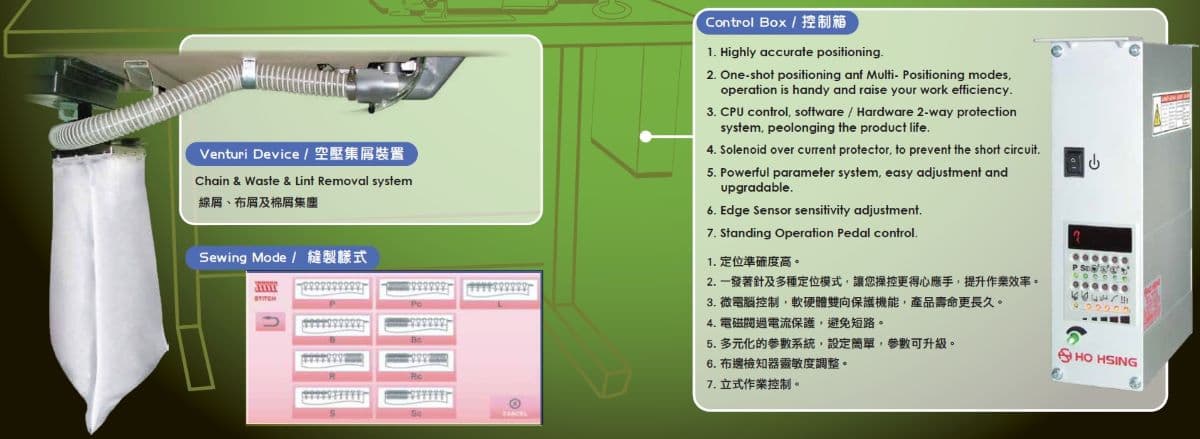

BL Device- Automatic Backlatcher Device
| FUNCTION | 機 能 | BL |
|---|---|---|
| Motor Rating | 馬達出力 | 400W |
| Power Voltage Range | 電壓範圍 | Single Phase (單相) 200-240V |
| Soft Start | 慢速起動 | ● |
| Presser Foot Lifter | 押腳提昇 | ● |
| Automatic Backlatching | 自動倒回縫 | ● |
| Edge Sensor | 電眼 | ● |
| Input Ports | 輸入埠數 | 14 |
| Solenoid Output Ports | 電磁閥輸出埠數 | 12 |
| * Gross Weight / 毛重 17.8 kgs * Packing Dimension / 包裝尺寸 400 L x 320 W x 710 H mm | ||
| Actual weight might be different depends on the varied accessories. 實際重量會依配件的不同而有所差異。 | ||
Model Code
Dimension - Control Box
Please read instruction manual before using the machine for safety operation. Specifications subject to change without notice.
- Please contact us when you need more information. sales@hohsing.com.tw
