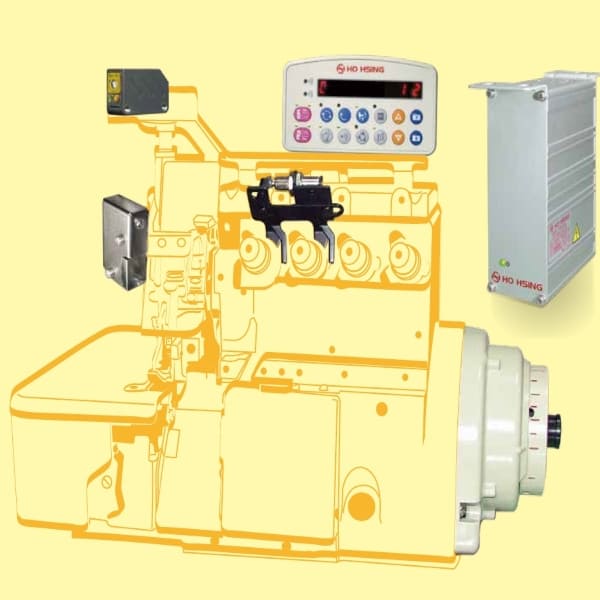

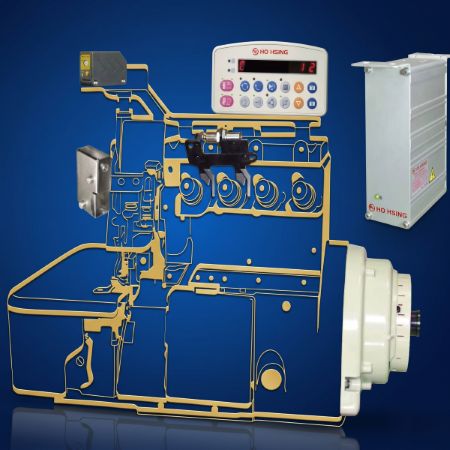

HD4X - 適用於拷克車
- 須搭配選針盒
Specification /規格表
| FUNCTION | 機 能 | HD41-6 Series | HD42-6 Series |
|---|---|---|---|
| Control Box Type | 控制箱 | Pneumatic / 空氣式 | Magnetic / 電磁式 |
| Motor Rating | 馬達出力 | 400W | |
| Power Voltage Range | 電壓範圍 | Single Phase ( 單相) : 200 ~ 240V | |
| F-50S Operation Panel | F-50S 操作盒 | ● | |
| Presser Foot Lifter | 押腳提昇 | ● | |
| Tape Cutter | 斬刀 | ● | |
| Motor Running Signal (Needle Cooling) | 馬達運轉輸出 | ● | |
| Air Saving Suction | 節能吸風功能 | ● | |
| Input Ports | 輸入埠數 | 7 | |
| Solenoid Output Ports | 電磁閥輸出埠數 | 7 | |
| DEVICE | 裝置 | HD41-6 Series | HD42-6 Series |

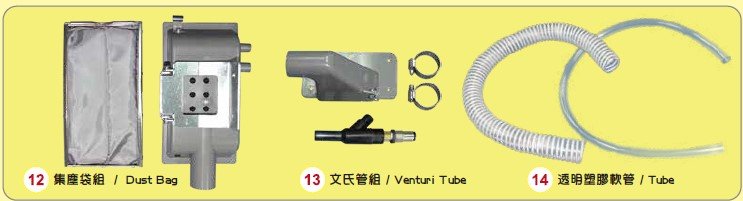

| Venturi Device | 空壓集屑裝置 | ● | |
| Tape Cutter With Sensor | 斬刀含電眼 | ● | |
| Cloth Plate With Sensors | 布板含電眼 | ● | |
| Presser Foot | 押腳 | ● | |
| Manual Switch With Lighting | 手動開關含照明燈 | ● | |
| * Gross Weight / 毛重 : 9.8 Kgs * Packing Dimension / 包裝尺寸 390 L x 255 W x 480 H mm | |||
| Actual weight might be different depends on the varied accessories. 實際重量會依配件的不同而有所差異。 | |||

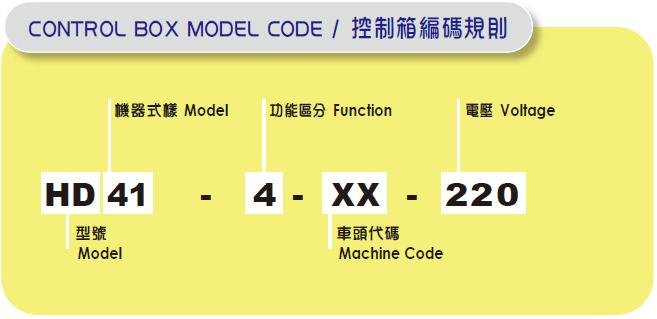

Model Code - Control Box / 編碼表- 控制箱

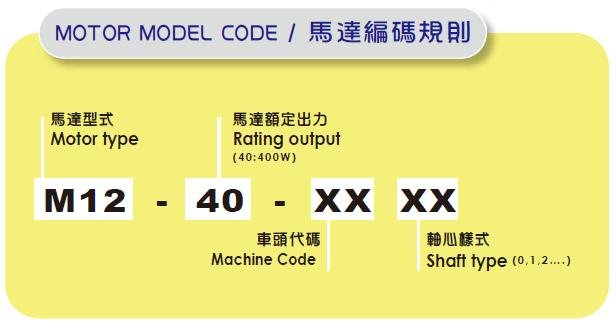

Model Code - Motor / 編碼表-馬達
Please read instruction manual before using the machine for safety operation. Specifications subject to change without notice.
為安全起見，使用之前，請詳閱使用手冊，產品規格若有任何變動，恕不另行通知。

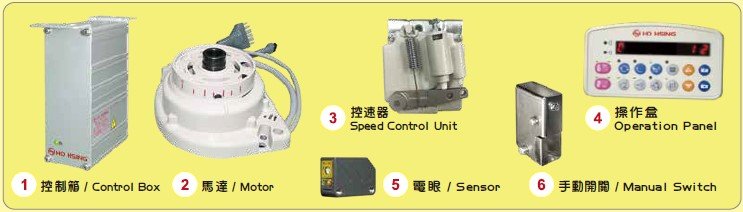

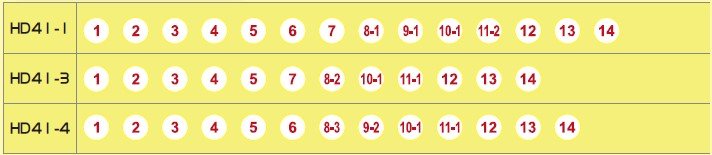

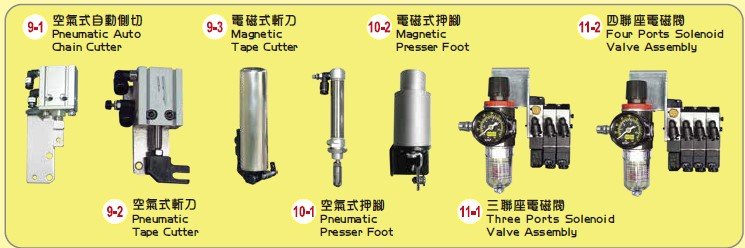

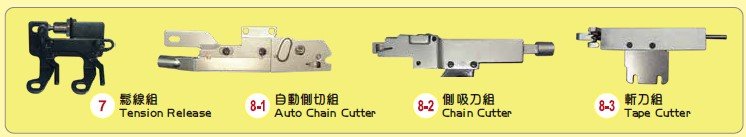

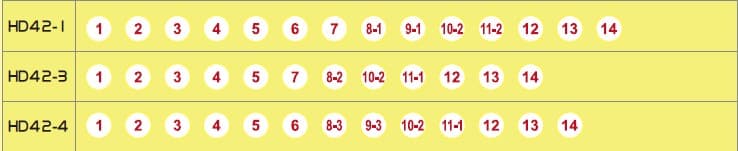

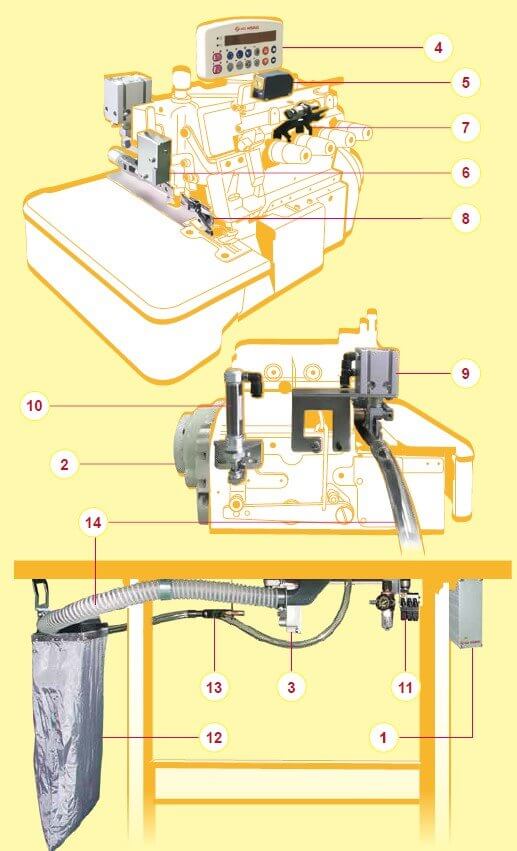

機能裝置配備
When Ordering, please specify the models of motor and sewing machine respectively.
訂購時請告知搭配之縫紉機及馬達型號.
- 若需要更詳細的資訊, 歡迎與我們聯絡! sales@hohsing.com.tw
